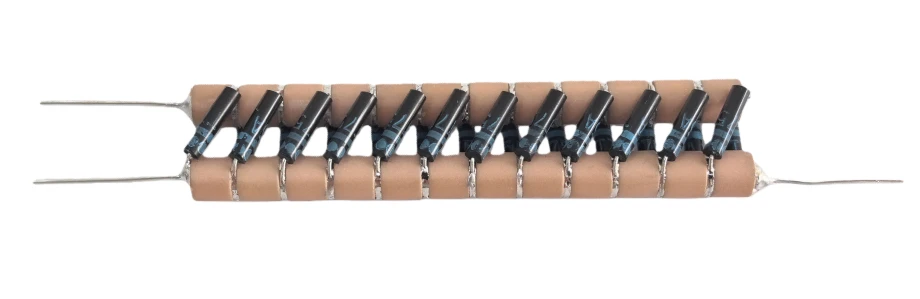

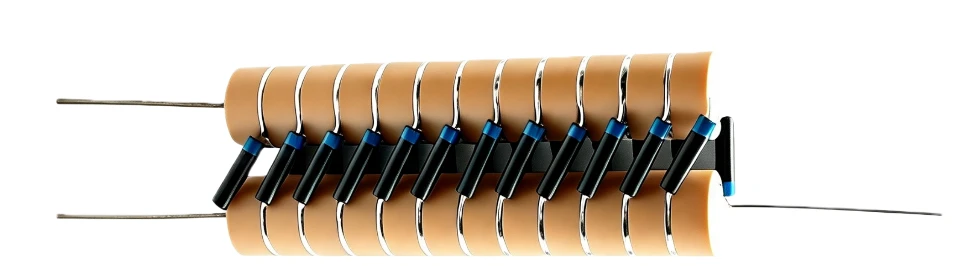

Cockcroft Walton Multiplier

Tsis muaj.

Type

Diode

Capacitance

Cov khoom siv Dielectric

Dielectric Loss

Rwb thaiv tsev tsis kam

Test Voltage

Duab

1

20KV251K+75A

16 kV5mA

250 PF

Y5T

<1.0%

>10⁵MΩ

30 KV

2

20 KV 501K +0320

20 KV 30 mA

500 PF

Y6T

＜0.5%

>10⁵MΩ

30 KV

3

20KV 102K +0320

20 KV 30 mA

1000 PF

ceramic

<0.2%

>10⁵MΩ

30 KV

4

20 KV471K + T75A

16 kV5mA

470pf ua

Y5T

<0.5%

>10⁵MΩ

30 KV

5

20KV 102K +0530

30 KV 50 mA

1000 PF

ceramic

<0.2%

>10⁵MΩ

30 KV

6

20KV471K+0320(7 theem)

20 KV 30 mA

470pf ua

X7R

<0.5%

>10⁵MΩ

30 KV

7

20KV471K+0320(8 theem)

20 KV 30 mA

470pf ua

X7R

<0.5%

>10⁵MΩ

30 KV

8

20KV471K+0320(10 theem)

20 KV 30 mA

470pf ua

Y5T

<0.5%

>10⁵MΩ

30 KV

9

20KV471K + T75A (10 theem)

16 kV5mA

470pf ua

Y5T

<1.0%

>10⁵MΩ

30 KV

10

20 KV 501K +0320

20 KV 30 mA

500 PF

Y5T

<0.5%

>10⁵MΩ

30 KV

11

20 KV681K+0320"

20 KV 30 mA

680pf ua

Y5T

<0.5%

>10⁵MΩ

30 KV

12

20KV 102K +0320

20 KV 30 mA

1000 PF

X7R

<1.0%

>10⁵MΩ

30 KV

13

15KV102K + HVRT250 (12 theem)

25 KV 30 mA

1000 PF

Y5T

<0.5%

>10⁵MΩ

22.5 KV 2

14

15KV102K + HVRT250 (14 theem)

25 KV 30 mA

1000 PF

Y5T

<0.5%

>10⁵MΩ

22.5 KV 2

15

20KV331K+75A

16 kV5mA

330 PF

Y5T

<0.5%

>10⁵MΩ

30 KV

16

20KV251K+75A

16 kV5mA

250 PF

Y5T

<0.2%

>10⁵MΩ

30 KV

17

20KV471K+75A Copper Terminal

16 kV5mA

470pf ua

X7R

<1.0%

>10⁵MΩ

30 KV

18

20KV271K+75A Copper Terminal

16 kV5mA

270 PF

Y5T

<0.2%

>10⁵MΩ

30 KV

19

20KV511K+75A Copper Terminal

16 kV5mA

5 10 xf

Y5T

<0.5%

>10⁵MΩ

30 KV

20

20KV221K+75A

16 kV5mA

220 PF

Y5T

<0.5%

>10⁵MΩ

30 KV

21

20KV331K+75A

16 kV5mA

220 PF

Y5T

<0.5%

>10⁵MΩ

30 KV

22

20KV221K+75Ib Ob

16 kV5mA

330 PF

Y5T

<0.5%

>10⁵MΩ

30 KV

23

20KV221K+75Ib leeg

16 kV5mA

220 PF

Y5T

<0.5%

>10⁵MΩ

30 KV

24

20KV331K+75Ib Ob

16 kV5mA

220 PF

Y5T

<0.5%

>10⁵MΩ

30 KV
